In any case the routine crash using linux. Using a maximum isolation of 0 the script generates only a single track while using different values of isolation the cript will generate, accoring to the tools used, a certain number of tracks to reach the maximum isolation value.Īt the end of the job, just pressing 'accept and make the board' all tracks and drills gcode files are generated and, if set, a preview is shown.įrankly speaking, not really clear, but gives an idea of the final results. The main screen sets a very important parameter: the etching tools size and the isolation. Now we can set ut our preferences, particularly regarding the position of the 'Z'axis according to the cnc milling machine: Executing the pcb-gcode-setup.ulp we have immediately to set two important parameters: Units (millimeters in our case) and Gcode style (linux EMC).

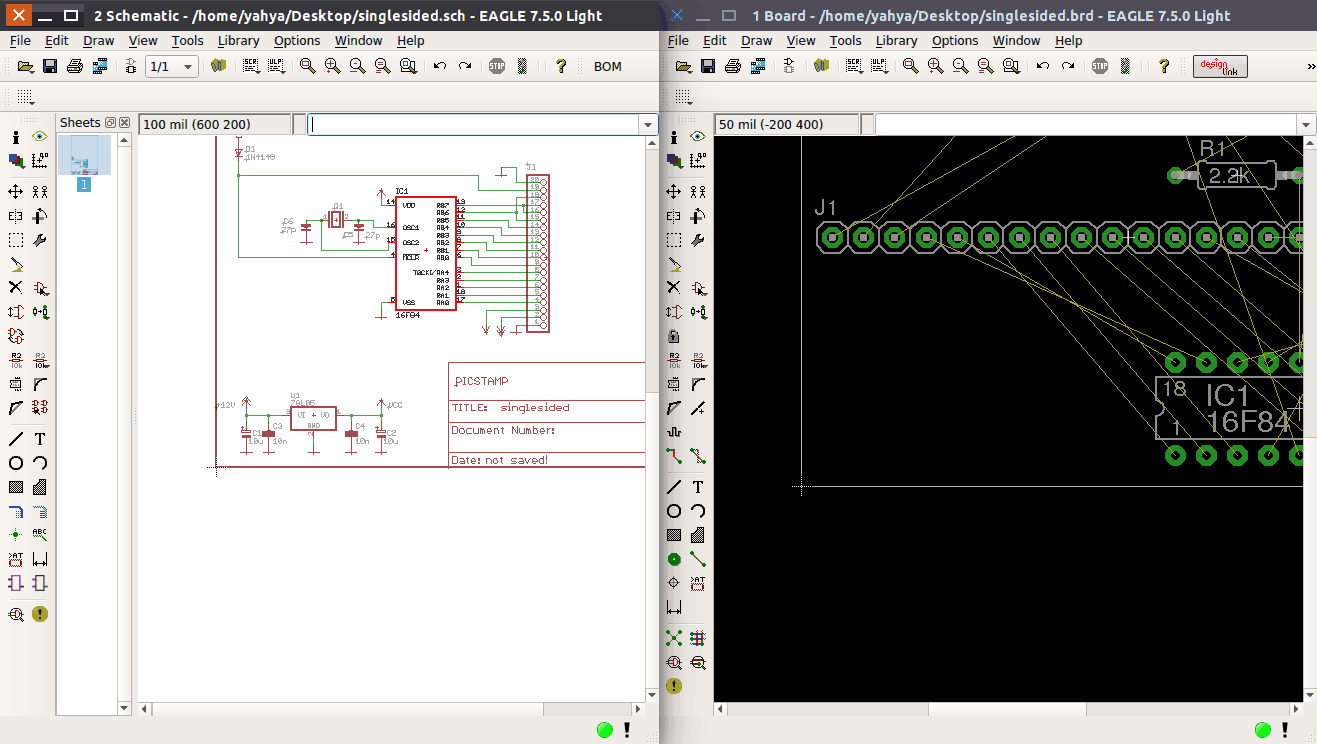

Naturally the downloaded zip must be uncompressed inside the directory ulp of eagle-cad. To realize a test we have quickly created a sample pcb (a very simple circuit using a 5V regulator): This version is characterized by a new visual interface and a preview of the tracks to be milled. 3.6.0.4), downloadable from cadsoft website, doesn't offer more functionalities of the previous versions but it is certainly clearer. The new release of pcb-gcode.ulp for Eagle Cad normally used to create pcbs (ver.
